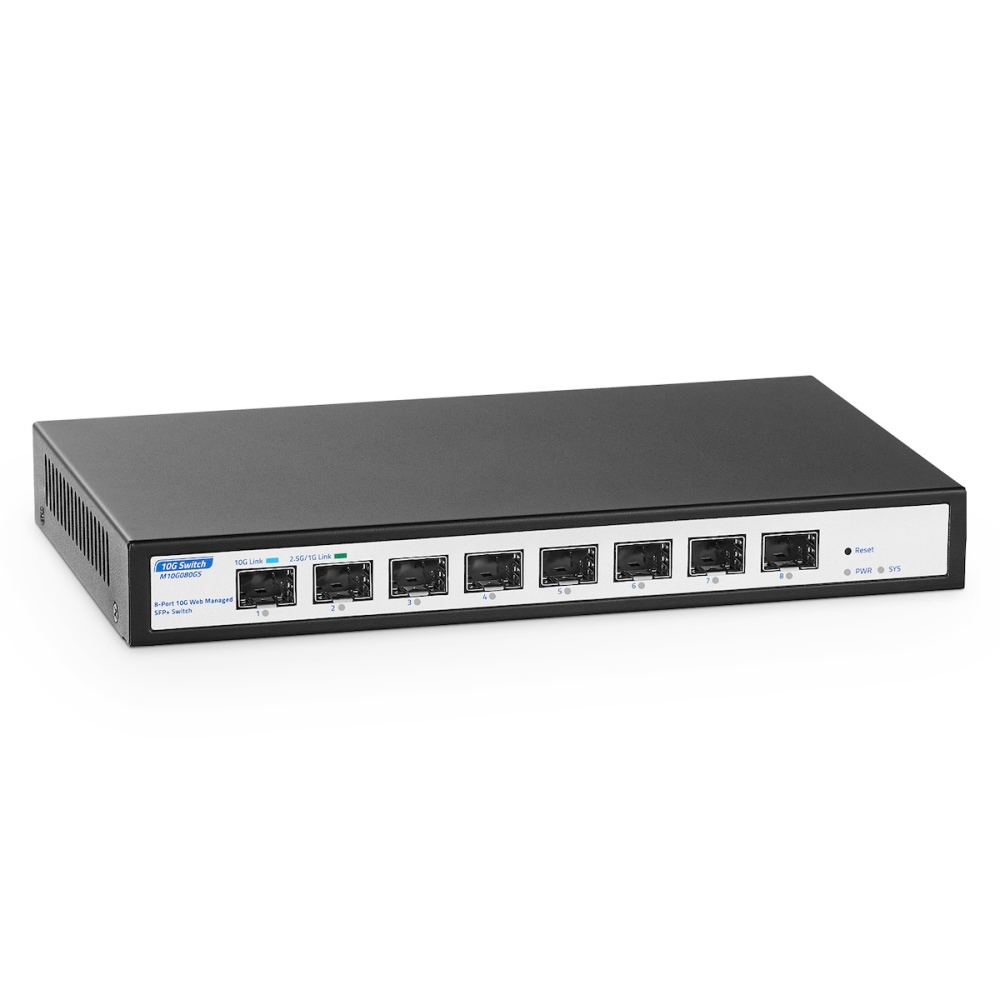

8 Port 10Gbps SFP+ Managed Switch, Support 1G/2.5G/10G SFP Module, 160Gbps Bandwidth, Desktop|Wallmount Metal Fanless, YuLinca Managed Fiber Switch

SKU: M10G080GS

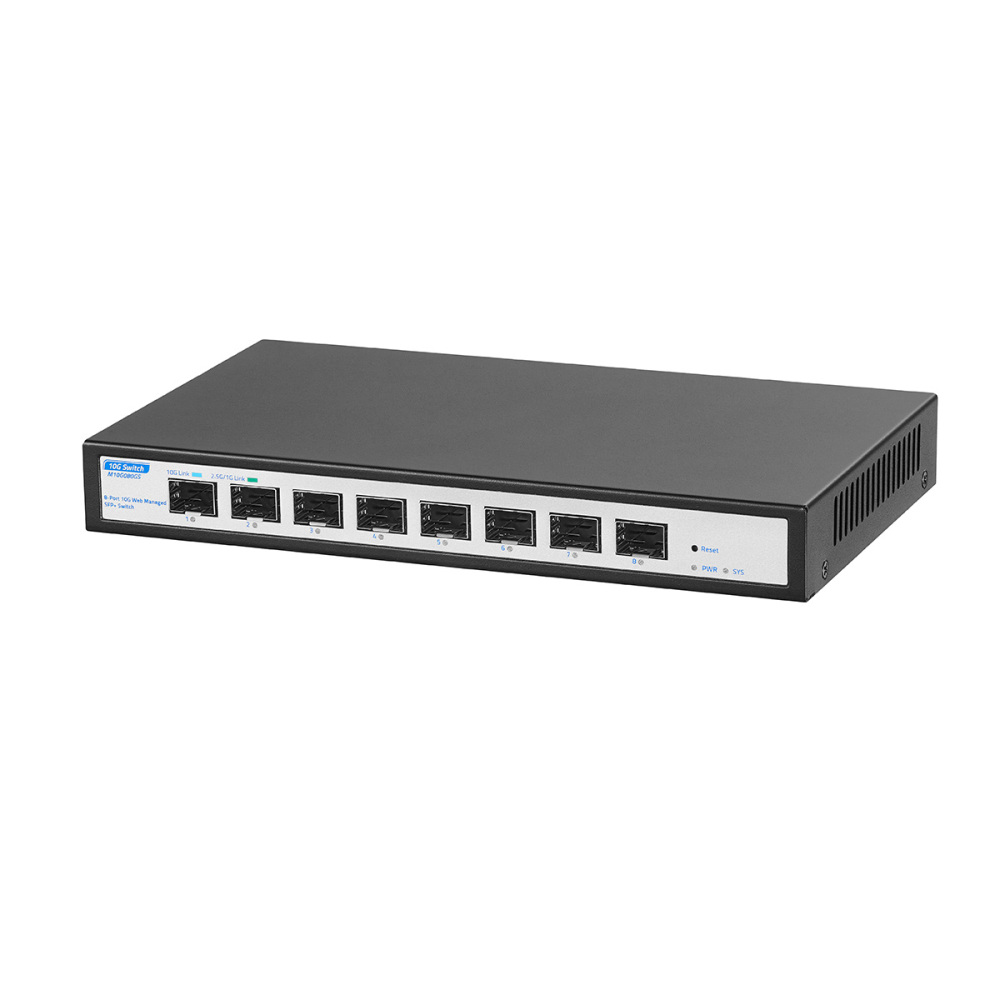

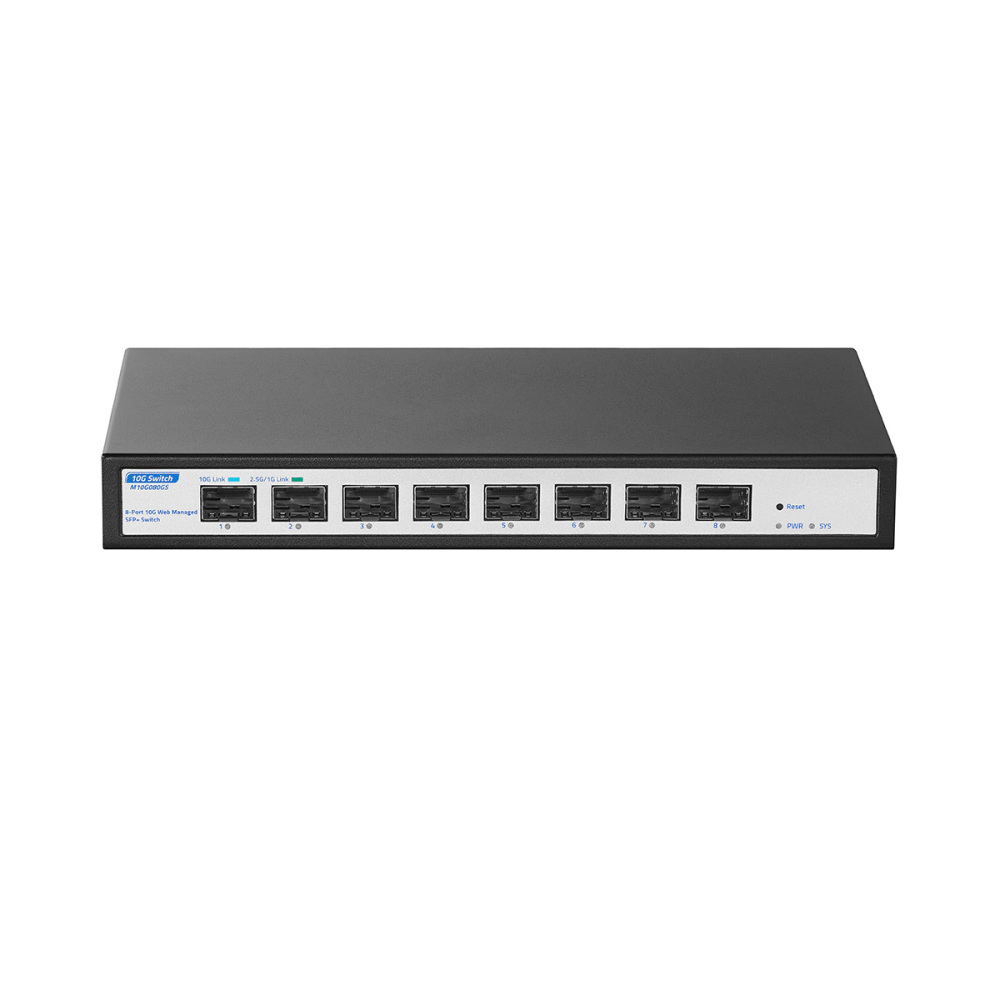

10G SFP+ Configuration - Equipped with 8×10Gbps SFP+ slots, it enables high-bandwidth connectivity and supports 1G/2.5G/10G optical fiber modules. Via the Web GUI, users can configure 10G/1G and 10G/2.5G adaptive modes, allowing compatibility with a broader range of data rates to meet diverse network needs.
Web-Managed Switch - The switch features a web-based management interface (accessible via login), supporting device/port status queries and a comprehensive set of Layer 2 (L2) configurations. These include VLAN, QoS, security settings, multicast management, MAC address table, Link Aggregation (LACP), Port Mirroring/Isolation/Rate Limiting/Security, Storm Control, Spanning Tree, diagnostic tools (e.g., Ping), and SNMP. NOTE: When making modifications via the web interface, please save the configuration to prevent data loss after reboot.
160Gbps Bandwidth - This 10Gbps switch delivers a switching capacity of 160Gbps. All ports support non-blocking 10G wire-speed forwarding, ensuring exceptional data processing performance even during high-traffic periods.

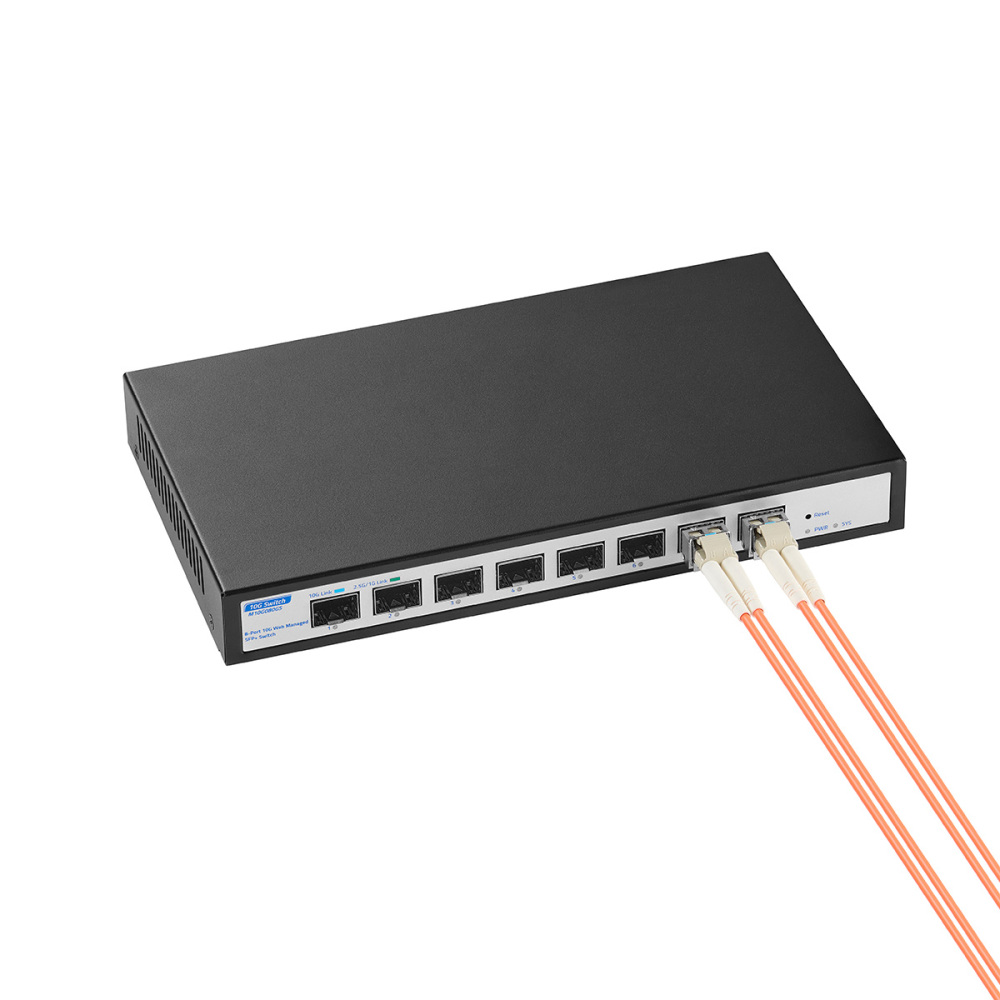

Open SFP Compatibility - This 10G web-managed fiber switch supports standard SFP interface optical modules with no encryption restrictions, including multi-mode, single-mode, and SFP-to-RJ45 modules. 10G/1G and 10G/2.5G adaptive modes can also be configured via the Web GUI. Note: SFP modules are not included.
Versatile Applications - The 8-port 10G switch boasts a durable metal chassis and a fanless design, enabling quiet and stable operation. It is ideal for scenarios requiring high-speed, long-distance fiber optic data transmission, fitting various network environments.

5.0 (62 Reviews)

158 Sold

$137.99

Received successfully

Coupon Code

Product Highlights

Supports 8* 10G SFP+ ports;

Supports IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3ab，IEEE802.3z;

Ethernet ports support 1.25G/2.5G/10G self- adaptive;

Support port Auto MDI/MDIX;

Adopting a storage and forwarding exchange mechanism;

All ports support line speed switching;

Panel indicator lights monitor working status and help failure analysis;

Support QoS data priority;

Support web management;

Specification Parameters

Model	M10G080GS
Interface	8* 10G SFP+Ports
Port Standard	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) IEEE 802.3x: Flow Control IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G/5G Ethernet standard)
Network Medium	1000BASE-SX: 62.5μm MMF(multi mode)(Minimum range: 2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range: 2m～550m)or 10μm SMF(Minimum range: 2m～5km) 2500BASE-X: G.652D SMF(Single mode)(Minimum range: 2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range: 2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range: 2m～10km)
Bandwidth	160Gbps
Packet Forwarding Rate	119.04Mpps
Packet Buffer	12Mbit
MAC Address Table	16K
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Jumbo Frame	support
Transmission Method	Store and Forward
Power Supply	DC 12V 2.5A
Mainboard Power Consumption	18W
Structure Information	Product Size: 22012628mm Package Size: 25922860mm Product Net-Weight: 0.62KG Product Gross-Weight: 0.86KG

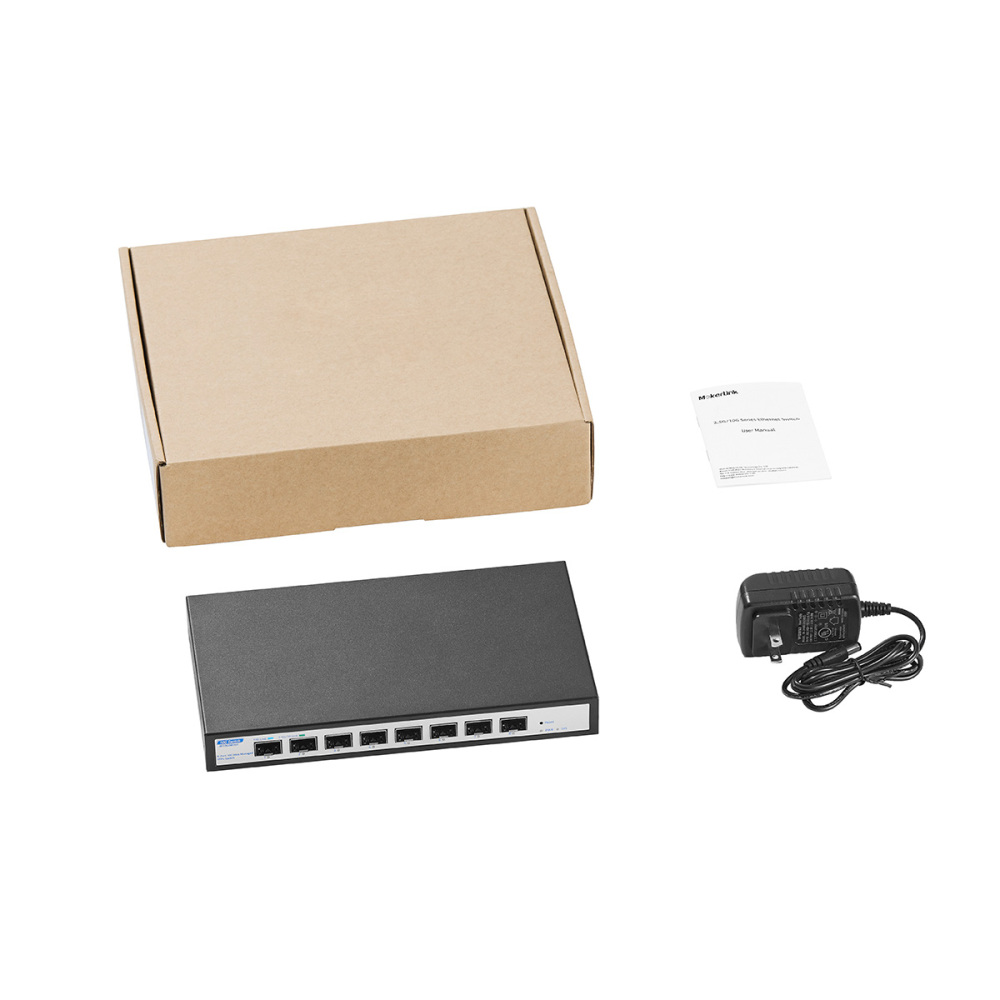

Package Contents	Switch 1pcs, ac adapter 1pcs, manual 1pcs
Fan Quantity	1
Installation	Desktop / Wall Mount
Surge Protection	Port Surge: Common mode 4KV,differential mode 2KV;(Class A) Electrostatic ESD: Air 8KV(Class B), Contact 6KV (Class A)
Environment	Operating Temperature: 0~40°C Storage Temperature: -40 °C to 70 °C Operation Humidity: 10%~90%，non condensing Storage Humidity: 5%~95%，non condensing
	PWR - On: Powered on, Off: Powered off

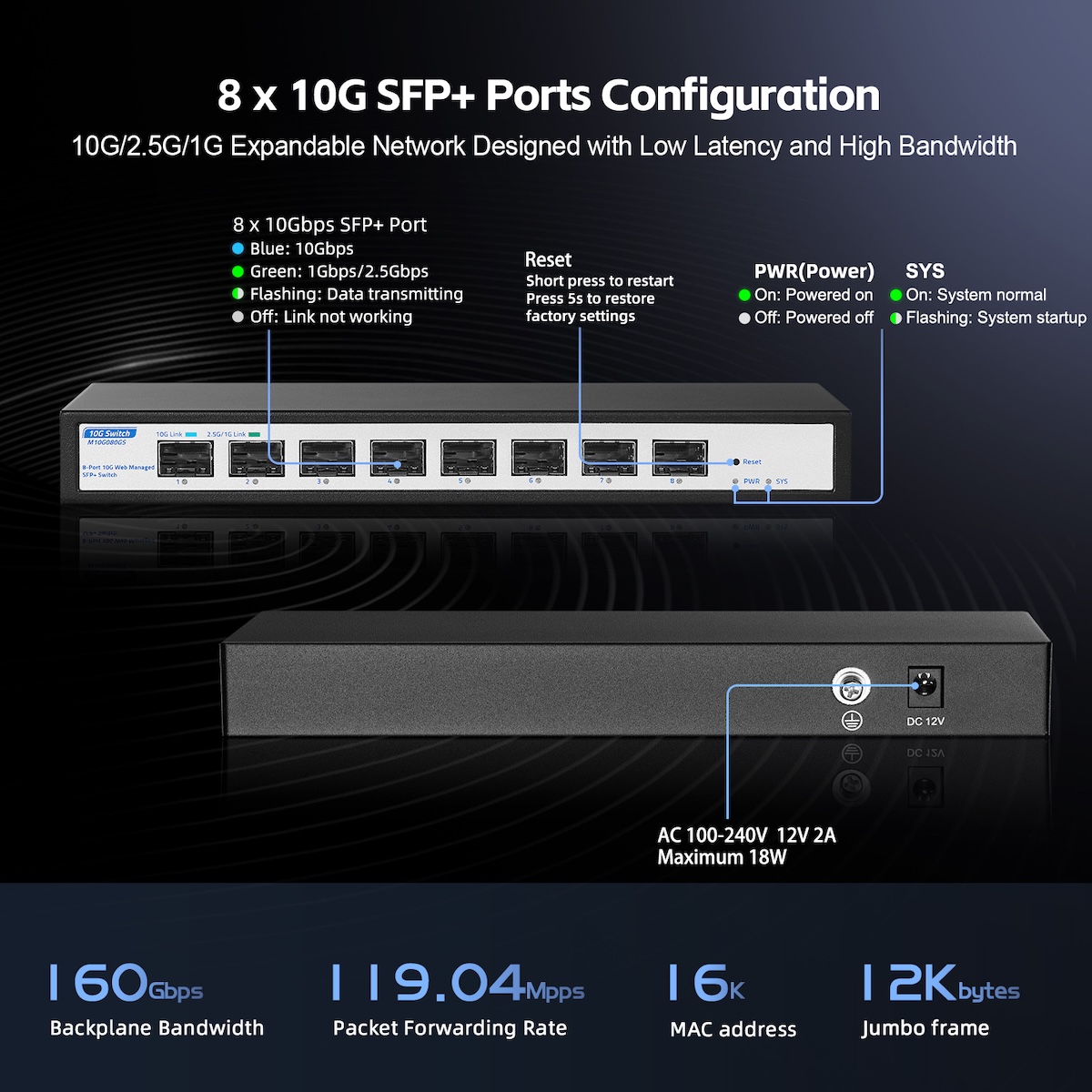

Led Indicator	PWR - On: Powered on, Off: Powered off, SYS - On: System normal, Flashing: System startup 10G (Blue Light）- On: Link connect normal, Flashing: Data transmitting, Off: Link off 2.5G/1G (Green Light) - On: Link connect normal, Flashing: Data transmitting, Off: Link off
RESET	Long press for 6 seconds to restore factory settings
L2 Function	Port configuration, Link Aggregation(Static Group/LACP), Storm Control, Port Mirroring, Loopback Detection, VLAN, STP/RSTP, IGMP, QoS, Port Statistics
